How to export certificate to PFX format

Sitecore 9 use SSL certificates to secure communication with xConnect and Solr.

Generate a self-signed certificate

Sitecore Fundamentals module has a task for generating self-signed certificate and export certificate to the crt file. In each installation package, you can find a file xconnect-createcert.json This file can be used to generate a self-signed certificate and install the certificate on the local system.

#create and install certificate for Solr
$certParams = @{
    Path = "C:\xconnect-createcert.json"
    CertificateName = "solr.local"
}
Install-SitecoreConfiguration @certParams -Verbose

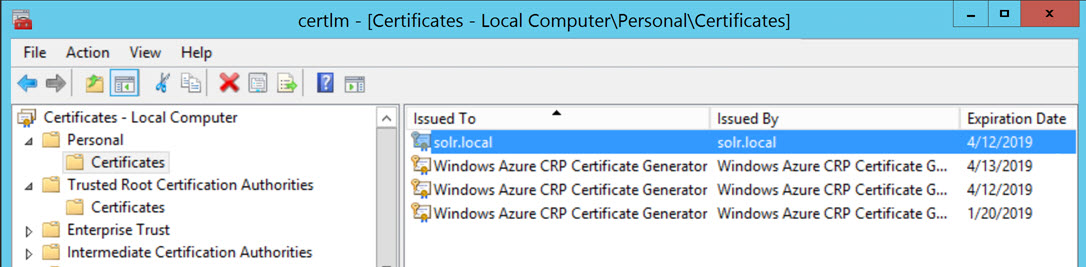

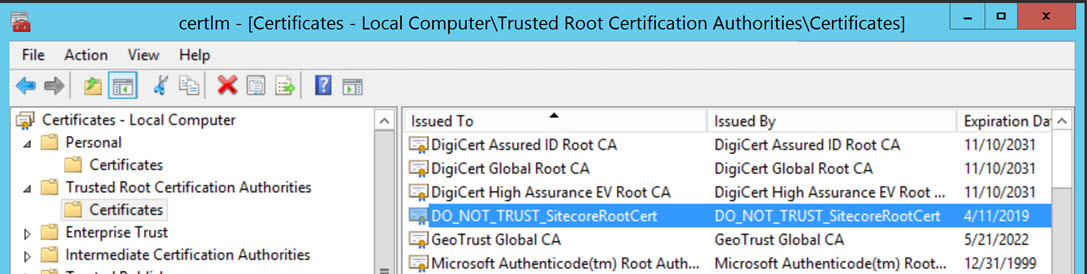

The output from the execution of xconnect-createcert.json is the following:

Export the certificate to PFX file

What if you want to export the certificate to PFX format? You can put this code somewhere between certificate generation and certificate usage:

$solrHost = "solr.local"
$password = "secret"
$certificateStore = "C:\Solr6.6.2\\server\\etc\\solr-ssl.keystore.pfx"
$cert = Get-ChildItem Cert:\LocalMachine\Root | where FriendlyName -eq "$solrHost"
$certPwd = ConvertTo-SecureString -String $password  -Force -AsPlainText
$cert | Export-PfxCertificate -FilePath $certificateStore -Password $certpwd | Out-Null

You can also convert this code to use as SIF task.

Create a SIF task to the export certificate to PFX file

First, we need to define parameters for our script

 "Parameters": {
    // An example of CertStoreLocation Cert:\LocalMachine\My
    "CertStoreLocation": {
      "Type": "String",
      "Description" : "Specifies the path of the store from which certificates will be exported."
    },
    // Property and value are used to choose certificate from CertStoreLocation
    // By defaul FriendlyName is used to find certificate to export,
    // but you can specify other property available in certificate ex. Subject
    "Property": {
      "Type": "String",
      "DefaultValue" : "FriendlyName"
    },
    "Value": {
      "Type": "String"
    },
    "PfxFile": {
      "Type": "String",
      "Description" : "Specifies the path for the PFX file."
    },
    "CertPassword": {
      "Type": "String",
      "Description" : "Specifies the password for the exported PFX file."
    }
  }

Next, we have to create a one-liner script. This script:

• will find a proper certificate in provided certification storage
• export certificate to file and encrypt with provided password

Please notice that script is flexible where $Property -eq $Value. You can use any certificate property to find a proper certificate. By default FriendlyName is used, but for example, you can use Thumbprint, Subject or other properties available in certificate object.

Get-ChildItem $CertStoreLocation | where $Property -eq $Value | Export-PfxCertificate -FilePath $PfxFile -Password (ConvertTo-SecureString -String $CertPassword -Force -AsPlainText) | Out-Null

Now, let's wrap up a script as SIF task:

"Tasks": {
    "Export-Certificate": {
      "Type": "ScriptBlock",
      "Params": {
        "Script": "PARAM($CertStoreLocation,$Property,$Value,$PfxFile,$CertPassword) Get-ChildItem $CertStoreLocation | where $Property -eq $Value | Export-PfxCertificate -FilePath $PfxFile -Password (ConvertTo-SecureString -String $CertPassword -Force -AsPlainText) | Out-Null",
        "Arguments": [ "[parameter('CertStoreLocation')]", "[parameter('Property')]", "[parameter('Value')]", "[parameter('PfxFile')]", "[parameter('CertPassword')]" ]
      }
    }
  }

The JSON file ready to download and use is available here export-pfxcertificate.json

You should configure script and use as on example below:

Import-Module SitecoreInstallFramework

$exportParams =@{
    Path = "C:\export-pfxcertificate.json"
    PfxFile = "C:\exported.pfx"
    CertPassword = "secret"
    CertStoreLocation = "Cert:\LocalMachine\My"
    Value = "solr.local"
}
Install-SitecoreConfiguration @exportParams -Verbose
